## <font color=red>环信IM</font>
### <font color=#F39C12>一、准备工作</font>
#### 1.创建IM应用
[环信官网](https://www.easemob.com/)
- 注册账户，选择**个人开发者**（可以免费使用100个用户）
- 创建IM应用，注册模式选择**开放注册**
<img src="https://img-blog.csdnimg.cn/20201014141523503.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />

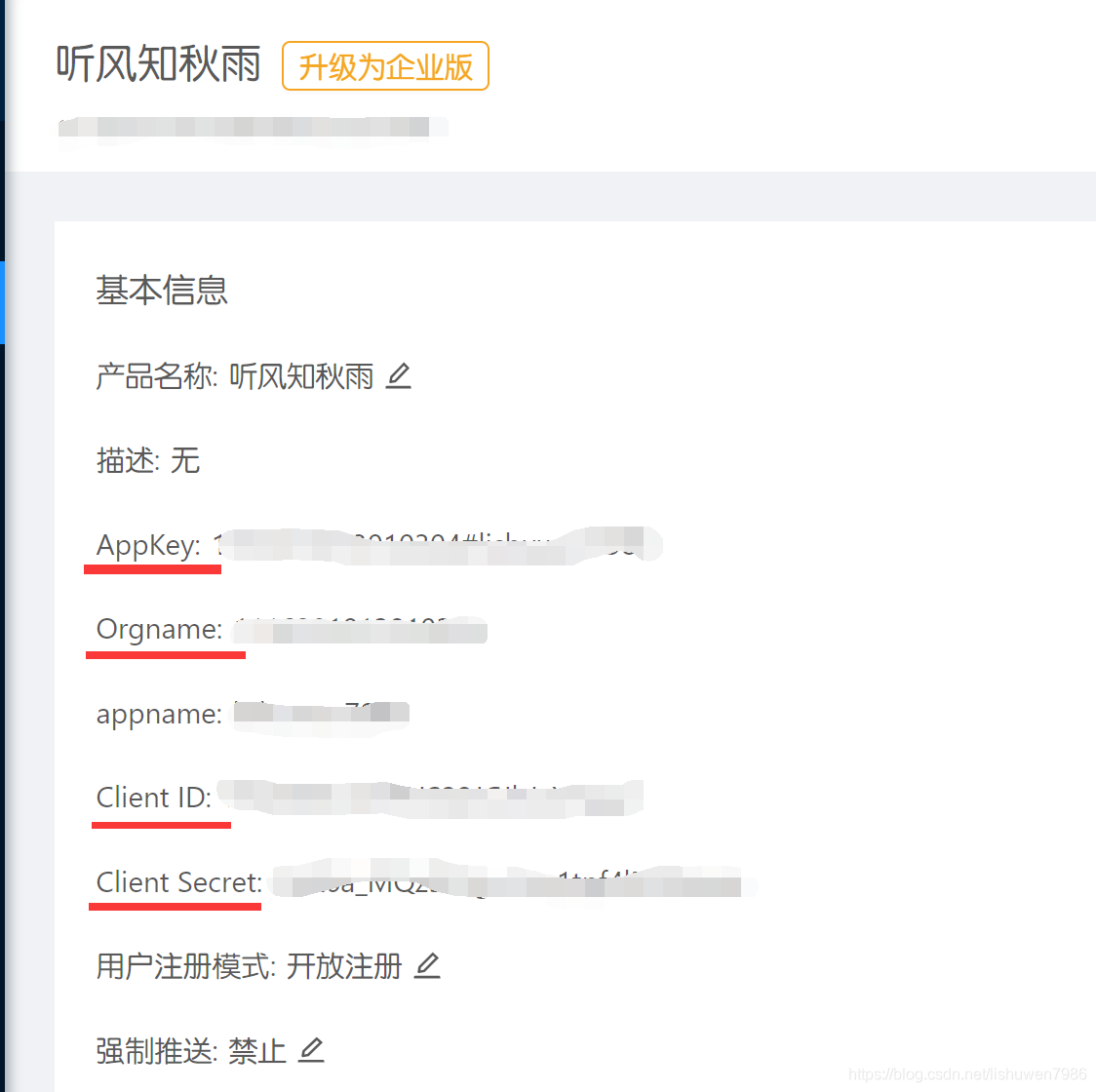

- 进入创建的IM应用，可以看到`appkey`，`orgname`，`client id`，`client secret`等字段 ，**后面需要使用**
<img src="https://img-blog.csdnimg.cn/20201014142119171.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />
#### 2.接口测试
- 打开[REST API Doc]()， 这是环信服务器端集成`Swagger`文档，用于**测试各个API接口**
<img src="https://img-blog.csdnimg.cn/20201014142744915.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />
- 这里以**获取token为例**
<img src="https://img-blog.csdnimg.cn/20201014143411528.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
<img src="https://img-blog.csdnimg.cn/20201014144009239.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
#### 2.参照开发文档
[开发文档地址](http://docs-im.easemob.com/)
**我是web开发，选择的是web客户端集成**：
[web客户端集成文档直通车链接](http://docs-im.easemob.com/im/web/intro/start)
<img src="https://img-blog.csdnimg.cn/20201014144413681.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
### <font color=#F39C12>二、Web IM 集成</font>
#### 1.下载集成案例 （下载的文件名为webim）
```shell
git clone https://github.com/easemob/webim.git
```
<img src="https://img-blog.csdnimg.cn/20201014144914299.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 50%;" />
#### 2. 复制案例中的文件到项目中
- \webim\sdk目录下的所有js文件到项目resources\static\js中
- \webim\simpleDemo目录下的demo.html和WebIMConfig.js放入项目resources\static\中
<img src="https://img-blog.csdnimg.cn/20201014150543930.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
> demo.html文件是一个测试文档，依靠这个文档可以做集成
**注意事项：**
要修改demo.html文件引入js文件的路径，否则js路径会不对，因为这里是复制过来的
<img src="https://img-blog.csdnimg.cn/20201014154122352.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
#### 3.启动springboot进行测试
我的项目地址：`http://localhost:9008/demo.html `
**demo.html文件中提供了两个测试账号：**
-
测试帐号：<font color=red>**1c1c**</font>，密码：<font color=red>**111**</font>
-
测试账号：<font color=red>**1v1v**</font>，密码：<font color=red>**111**</font>
<img src="https://img-blog.csdnimg.cn/20201014153848211.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />
<img src="https://img-blog.csdnimg.cn/2020101415395247.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
> 登录之后可以看到连接建立成功代表成功登录了，之后在新打开一个同样页面在登录另一个测试账号
**登录好另一个测试账号就可以发消息进行测试了：**
- **1v1v**给**1c1c**发送消息
<img src="https://img-blog.csdnimg.cn/20201014154903465.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />
- **1c1c**收到**1v1v**发送的消息
<img src="https://img-blog.csdnimg.cn/20201014155121397.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
> 简单的单聊测试就完成了，后面就是将demo.html文件中需要用到的功能集成到自己的html文件中就OK了
#### 4. 集成demo文件的功能到自己的HTML文件中
- 以我自己的HTML文件chatroom为例，先从demo文件中复制`meta`和`script`标签的信息到chatroom中
<img src="https://img-blog.csdnimg.cn/20201014155837534.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />
- 修改WebIMConfig.js文件中`appkey`为自己创建的IM项目中的`appkey`（在自己IM中注册用户等操作必须的）
<img src="https://img-blog.csdnimg.cn/20201014161711600.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
- 从demo文件中将以下这段**建立连接**复制到chatroom的`script`标签中（建立连接必须的）
```js
/*建立连接*/
var conn = {};
console.log(WebIM, window.WebIM);
WebIM.config = config;
conn = WebIM.conn = new WebIM.default.connection({
appKey: WebIM.config.appkey,
isHttpDNS: WebIM.config.isHttpDNS,
isMultiLoginSessions: WebIM.config.isMultiLoginSessions,
host: WebIM.config.Host,
https: WebIM.config.https,
url: WebIM.config.xmppURL,
apiUrl: WebIM.config.apiURL,
isAutoLogin: false,
heartBeatWait: WebIM.config.heartBeatWait,
autoReconnectNumMax: WebIM.config.autoReconnectNumMax,
autoReconnectInterval: WebIM.config.autoReconnectInterval,
isStropheLog: WebIM.config.isStropheLog,
delivery: WebIM.config.delivery
});
```
- 从demo文件中将以下这段**回调方法**复制到chatroom的`script`标签中（监听必须的）
```js
/*回调方法*/
conn.listen({
onOpened: function (message) { //连接成功回调
var myDate = new Date().toLocaleString();
console.log("%c [opened] 连接已成功建立", "color: green");
console.log(myDate);
// rek();
// alert(myDate + "登陆成功")
},
onClosed: function (message) {
console.log("onclose:" + message);
console.log(error);
}, //连接关闭回调
onTextMessage: function (message) {
$("#log-container").append("<div class='bg-success'><label class='text-info'> 收到用户id为："+message.from+";发的消息是：</label><div class='text-info'>"+message.data+"</div></div><br>");
console.log('onTextMessage: ', message);
}, //收到文本消息
});
```
**以上都是必须完成的步骤，后面的内容根据实际开放场景进行添加：**
具体操作步骤查阅[Web IM集成开放文档](http://docs-im.easemob.com/im/web/intro/basic)
<img src="https://img-blog.csdnimg.cn/2020101416134221.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
我的chatroom.html文件（可供参考）
```html
<!DOCTYPE HTML>
<html>
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="edge" />
<title>聊天室</title>
<script src="./WebIMConfig.js"></script>
<script src="../js/webimSDK3.0.4.js"></script>
<script src="../js/EMedia_x1v1.js"></script>
<script src="./js/jquery-1.12.3.min.js"></script>
<link rel="stylesheet" href="//cdn.bootcss.com/bootstrap/3.3.5/css/bootstrap.min.css">
<script src="//cdn.bootcss.com/bootstrap/3.3.5/js/bootstrap.min.js"></script>
<style>
body {
margin-top: 5px;
}
</style>
</head>
<body>
<div class="container">
<div class="row">
<div class="col-md-3">
<div class="panel panel-primary">
<div class="panel-heading">
<h3 class="panel-title">用户注册或登录环信IM</h3>
</div>
<div class="panel-body">
<input type="text" class="form-control" id="userId" placeholder="用户id"/><br>
<button id="reg" type="button" class="btn btn-primary">注册</button>
<button id="login" type="button" class="btn btn-primary">登录</button>
</div>
</div>
<div class="panel panel-primary" id="online">
<div class="panel-heading">
<h3 class="panel-title">当前在线的其他用户</h3>
</div>
<div class="panel-body">
<input type="text" class="form-control" id="toUserId" placeholder="接收消息用户id"/><br>
</div>
</div>
<div class="panel panel-primary">
<div class="panel-heading">
<h3 class="panel-title">群发系统广播</h3>
</div>
<div class="panel-body">
<input type="text" class="form-control" id="msg"/><br>
<button id="broadcast" type="button" class="btn btn-primary">发送</button>
</div>
</div>
</div>
<div class="col-md-9">
<div class="panel panel-primary">
<div class="panel-heading">
<h3 class="panel-title" id="talktitle"></h3>
</div>
<div class="panel-body">
<div class="well" id="log-container" style="height:400px;overflow-y:scroll">
</div>
<input type="text" id="myinfo" class="form-control col-md-12"/> <br>
<button id="send" type="button" class="btn btn-primary">发送</button>
</div>
</div>
</div>
</div>
</div>
<script>
/*建立连接*/
var conn = {};
console.log(WebIM, window.WebIM);
WebIM.config = config;
conn = WebIM.conn = new WebIM.default.connection({
appKey: WebIM.config.appkey,
isHttpDNS: WebIM.config.isHttpDNS,
isMultiLoginSessions: WebIM.config.isMultiLoginSessions,
host: WebIM.config.Host,
https: WebIM.config.https,
url: WebIM.config.xmppURL,
apiUrl: WebIM.config.apiURL,
isAutoLogin: false,
heartBeatWait: WebIM.config.heartBeatWait,
autoReconnectNumMax: WebIM.config.autoReconnectNumMax,
autoReconnectInterval: WebIM.config.autoReconnectInterval,
isStropheLog: WebIM.config.isStropheLog,
delivery: WebIM.config.delivery
});
/*回调方法*/
conn.listen({
onOpened: function (message) { //连接成功回调
var myDate = new Date().toLocaleString();
console.log("%c [opened] 连接已成功建立", "color: green");
console.log(myDate);
// rek();
// alert(myDate + "登陆成功")
},
onClosed: function (message) {
console.log("onclose:" + message);
console.log(error);
}, //连接关闭回调
onTextMessage: function (message) {
$("#log-container").append("<div class='bg-success'><label class='text-info'> 收到用户id为："+message.from+";发的消息是：</label><div class='text-info'>"+message.data+"</div></div><br>");
console.log('onTextMessage: ', message);
}, //收到文本消息
});
/*注册*/
var userId; //用户id
var password; //密码
var nickname; //昵称
document.getElementById('reg').onclick = function () {
var userId = document.getElementById("userId").value;
$.ajaxSettings.async = false; //关闭ajax异步，改为同步，因为要保证先获取到信息
$.get("/user/"+userId,function (data){
password = data.data.password;
nickname = data.data.nickname;
});
var option = {
//用户id
username: userId,
//密码
password: password,
//昵称
nickname: nickname,
appKey: WebIM.config.appkey,
success: function () {
console.log('注册成功');
},
error: function () {
console.log('注册失败');
},
apiUrl: WebIM.config.apiURL
};
conn.signup(option);
};
/*登录*/
document.getElementById('login').onclick = function () {
console.log(WebIM, window.WebIM);
userId = document.getElementById("userId").value;
$.ajaxSettings.async = false; //关闭ajax异步，改为同步，因为要保证先获取到信息
$.get("/user/"+userId,function (data){
password = data.data.password;
});
options = {
apiUrl: WebIM.config.apiURL,
user: userId,
pwd: password,
appKey: WebIM.config.appkey
};
conn.open(options);
console.log(options)
};
/*
* Message
*/
//文本消息
var conf = WebIM.config
//var WebIM = WebIM.default
WebIM.config = conf
WebIM.message = WebIM.default.message
WebIM.utils = WebIM.default.utils
WebIM.debug = WebIM.default.debug
WebIM.statusCode = WebIM.default.statusCode
var myDate = new Date().toLocaleString();
document.getElementById('send').onclick = function () {
var toUserId = document.getElementById("toUserId").value;
var tmsg = document.getElementById("myinfo").value;
var id = conn.getUniqueId(); // 生成本地消息id
var msg = new WebIM.default.message('txt', id); // 创建文本消息
msg.set({
msg: tmsg, // 消息内容
to: toUserId, // 接收消息对象（用户id）
ext: {
'time': myDate
},
success: function (id, serverMsgId) {
console.log('send private text Success');
msgText = msg.body.msg;
},
fail: function (e) {
console.log("Send private text error");
}
});
msg.body.chatType = 'singleChat';
conn.send(msg.body);
$("#log-container").append("<div class='bg-success'><label class='text-info'>用户id为："+userId+";发的消息是：</label><div class='text-info'>"+tmsg+"</div></div><br>");
console.log(msg);
};
</script>
</body>
</html>
```
#### 5. 测试使用
- 在mysql数据库中建立表，有`userId`，和`password`
<img src="https://img-blog.csdnimg.cn/202010141631086.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" />
- 在controller中编写`findById`方法用来获取`password`和`ickname`
<img src="https://img-blog.csdnimg.cn/20201014170529230.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
- 通过我的chatroom文件中可以看到，通过`userId`就可以获取`password`和`nickname` （注册和登录是同样的逻辑）
<img src="https://img-blog.csdnimg.cn/20201014163405363.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
- 注册两个账户，userId分别为`1`和`2`用来进行测试
<img src="https://img-blog.csdnimg.cn/20201014164548896.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom: 80%;" />
<img src="https://img-blog.csdnimg.cn/2020101416492466.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
- 将用户1和用户2分别登录后进行单聊测试
**用户1给用户2发送消息：**
<img src="https://img-blog.csdnimg.cn/20201014165416735.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
**用户2收到了用户1发过来的消息：**
<img src="https://img-blog.csdnimg.cn/20201014165648430.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpc2h1d2VuNzk4Ng==,size_16,color_FFFFFF,t_70#pic_center" style="zoom:80%;" />
> OK，单聊的集成就算是完成了，如果需要集成更多的内容可以从demo.html文件中复制过来，也可以参照文档说明
环信IM的集成
